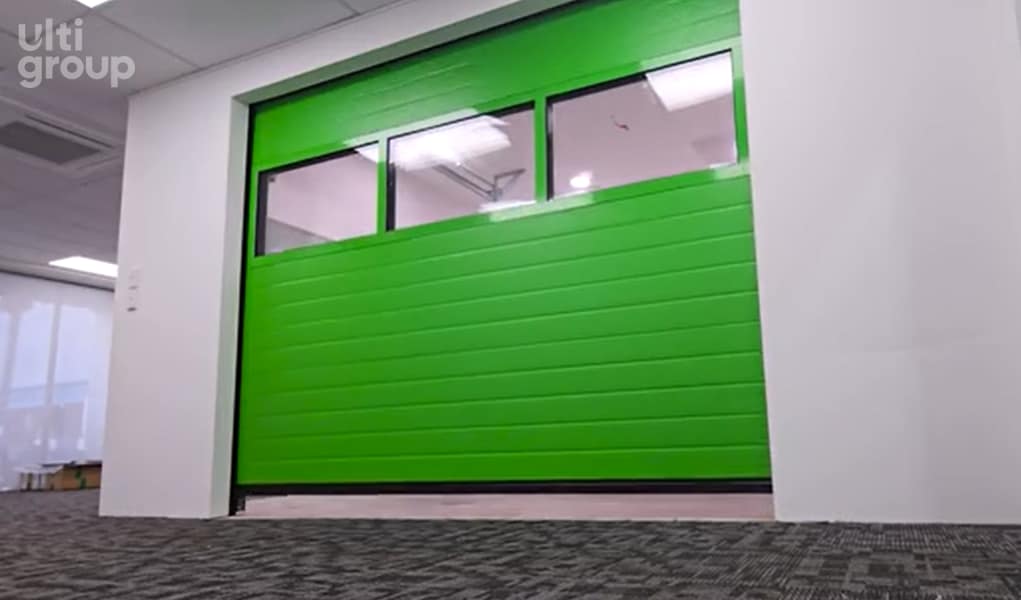

Smooth, Secure, and Efficient: The New Ulti T80 Insulated Sectional Door Installation at Ulti Group


We’re thrilled to share the latest from our Auckland Showroom, where Dean, our Technical Training Lead, and Jesse, our Business Development Manager, successfully installed the state-of-the-art Ulti T80 Insulated Sectional Door. This new addition, also known as the “No Sweat Door,” is a testament to our commitment to innovation, efficiency, and safety in rapid door and dock loading systems.


The Ulti T80 Insulated Sectional Door: A Quick Overview

The Ulti T80 Insulated Sectional Door is designed to provide superior performance with seamless operation, robust construction, and advanced safety features. Known for its excellent insulation properties, this door effectively eliminates condensation, ensuring a “No Sweat” experience. Equipped with a Pro Line motor and an intuitive IFU model, this door promises reliability and smooth functionality.


Installation Day Insights

On the installation day, our team came prepared with detailed planning and all necessary tools. Here’s a step-by-step look at the process:

  1. Preparation and Safety First:
    • The team began by ensuring they were equipped with the correct Personal Protective Equipment (PPE), including safety glasses, earmuffs, gloves, high-visibility vests, and safety shoes.
    • With shop drawings in hand, they performed ground level checks to ensure a perfect fit for the installation.
  2. Setting Up the Framework:
    • The initial setup involved securing the legs and kickbacks.
    • Following this, the springs and shafts were installed, providing the structural backbone for the door.
  3. Motor and Panels Installation:
    • The Pro Line motor was connected, ensuring a strong and consistent power supply.
    • Panels were then installed sequentially from the bottom up, ensuring a precise and secure fit.


Features of the Ulti T80 Insulated Sectional Door

  1. Smooth Operation:
  • One of the standout features of the Ulti T80 door is its smooth operation. Dean highlighted how effortlessly the door moves, making it a pleasure to use.
  1. Exceptional Insulation:
  • The Ulti T80 boasts 80-mm thick steel sandwich panels that are fully thermally separated, providing the highest class of insulation. This energy-efficient solution eliminates condensation, ensuring no sweat forms on the door.
  • The door’s fire-retardant polyurethane foam core, skinned with steel, results in an extra high insulation value. The double seals around the door further enhance its insulating properties.
  1. Customisable Finish:
  • The steel panels feature a Stucco finish with horizontal lines on both the inside and outside. The outer skin can be finished in a RAL colour of your choice, allowing for customization to match your facility’s aesthetics.
  1. Advanced Safety Features:
  • The door includes a light curtain that detects any obstruction and stops the door immediately, reversing its direction to prevent accidents.
  • A manual chain mechanism allows for manual operation in the event of a power outage, ensuring continuous functionality.


Behind the Scenes: Installation Details

Gord took us through the intricacies of the installation process, highlighting the importance of each component:

  • The door’s legs extend from the ground up, providing solid support.
  • Kickbacks and springs ensure that the panels are pushed back securely.
  • The shaft, running across the top, connects seamlessly to the motor, which operates on a 230-volt single-phase power supply.
  • Bottom panels feature see-through windows, enhancing visibility and safety.


A Job Well Done

The installation was completed without a hitch, showcasing the door’s user-friendly design and ease of installation. Dean and Gord were particularly impressed with the door’s smooth operation and thermal efficiency. The Ulti T80 Insulated Sectional Door is now ready to deliver top-notch performance, ensuring energy conservation, increased efficiency, and enhanced safety for our clients.

If you’re looking for an overhead door with the best insulation value, the Ulti T80 Insulated Sectional Door is your ideal choice. Feel free to reach out to any of our Ulti Group team members. We’re here to guide you through the process and help you make the best choice for your business needs.

Stay tuned for more updates and innovations from Ulti Group, where we are driven by our values of being Straight Up, Caring, Cutting Edge, Enthusiastic, and Driven. Together, we are committed to making a difference in the food and logistics industries, one door at a time.
