What “Good” Looks Like: Designing a High-Performance Dock System for Food Processing
When a food processing facility is scaling operations, the loading dock quickly becomes more than just a transfer point – it becomes a critical zone for hygiene, efficiency, and throughput.
That was exactly the context for Golden Bay Fruit, a horticultural producer based in Moteuka, New Zealand. As their site evolved to support additional coolstore capacity, the need for a fit-for-purpose loadout system became clear.
This project is a strong example of what “good” looks like when designing a dock system for food industry environments – not just in terms of products, but how those components work together as a complete, considered.
The Challenge: More Throughput, Without Compromising Hygiene
Golden Bay Fruit required a dock solution that could support:
- Increased coolstore capacity and truck movements
- Controlled loading conditions for produce integrity
- A design that aligned with food-sector hygiene expectations
- Practical integration into an existing or evolving building footprint
Like many food processing sites, the challenge wasn’t just selecting equipment – it was designing a system that balanced operational flow, environmental control, and buildability.
A Collaborative Approach to Dock Design
From early concept discussions through to final approval, this project was shaped through close collaboration between:
- Golden Bay Fruit
- Ulti Group
- VSE Structural Engineering
Initial concepts were developed early in 2021, with observations helping validate requirements around dock height, truck interface, and turning space.
As the design progressed, the team worked through:
- Dock positioning and building integration
- Structural considerations and clearances
- Truck access and manoeuvring constraints
- Hygiene-focused enclosure options
- Practical installation sequencing and lead times
This iterative process ensured the final solution wasn’t just technically sound – it was just aligned with real-world site use.

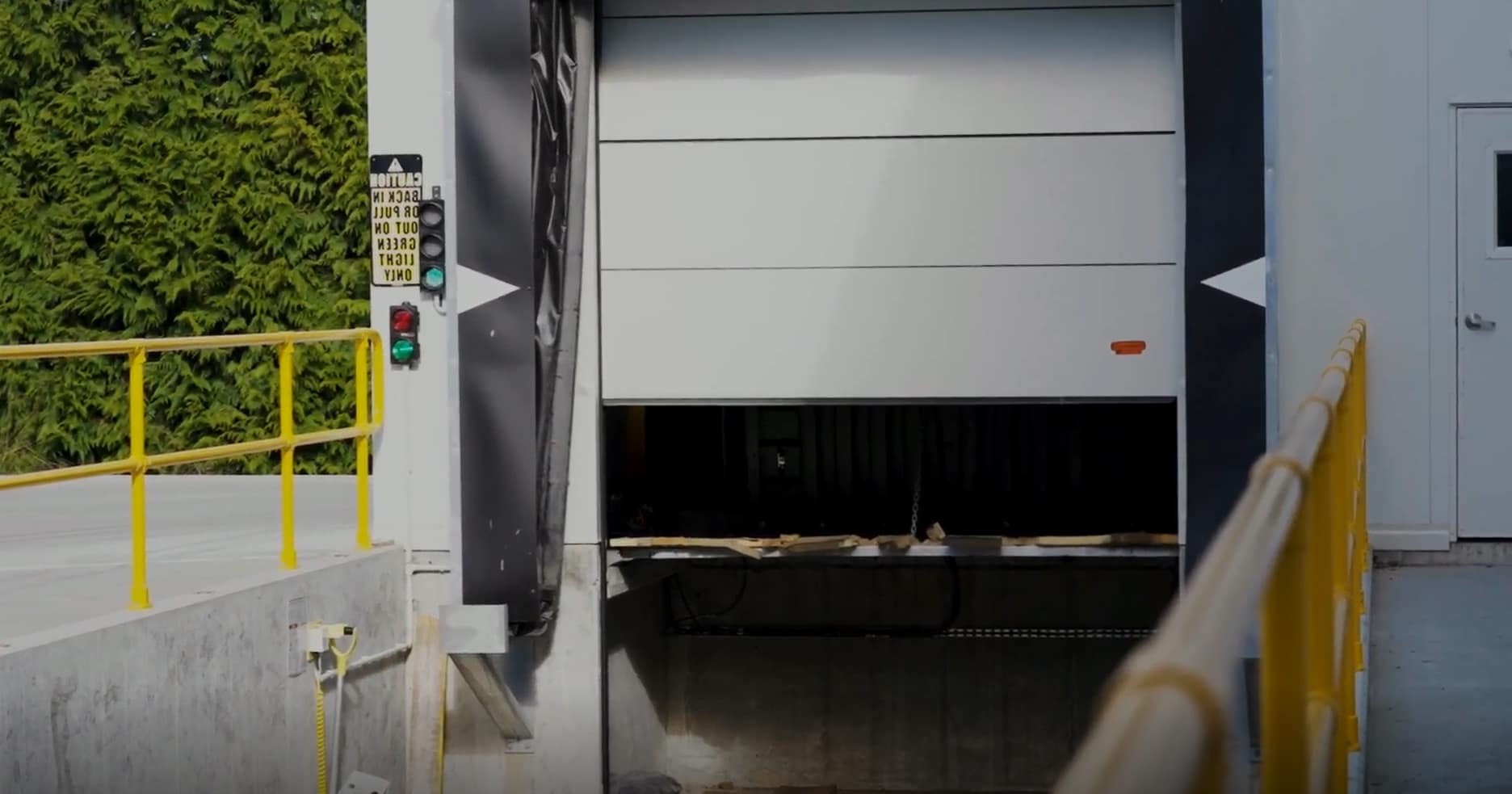

The Solution: A Fully Integrated Dock Loadout System
The resulting solution combined multiple dock system components into a cohesive loading environment:
✅ Container Dock Levellers
Designed to bridge the gap between truck and building, enabling efficient and safe product transfer across varying truck heights.
✅ Insulated Sectional Doors
Supporting temperature control within coolstore environments while maintaining durability for high-frequency use.
✅ Eclipse Dock Shelters
Helping to create a sealed interface between truck and building, reducing exposure to external elements.
✅ Dock Light Communication Systems
Providing visual communication between drivers and operators to improve safety and coordination during loading operations.
A Key Design Move: Bringing the Dock Back Into the Building
One of the most important design refinements was recessing the dock into the building structure.
This approach helped achieve several key outcomes:
- Simplified structural design by removing the need for separate steel dock leveller subframe
- Improved drainage layout, making water management easier to control
- A more enclosed loading zone, supporting hygiene-focused operations
Designing for Hygiene: More Than Just Washdown
In food processing, “clean” dock design goes beyond materials – it’s about controlling the environment.
For this project, the design direction supported:
- A more enclosed loading interface to limit external exposure
- Consideration of positive-pressure airflow concepts to help reduce the risk of pests entering the building
- Integration of insulated doors and shelter systems to maintain internal conditions
These decisions reflect a broader principle:
👉 A well-designed dock reduces risk before it needs to be managed operationally.
What “Good” Looks Like in a Dock System
Using this project as a reference point, a high-performing dock system typically includes:
1. Integrated Components – Not Standalone Products
Levellers, doors, shelters, and safety systems are designed to work together as a simple system.
2. Hygiene-Conscious Layout
Especially in food environments, the dock is designed to minimise exposure, contamination pathways, and cleaning complexity.
3. Site-Specific Design
The solution reflects actual truck types, dock heights, and traffic flow – not just standard templates.
4. Efficient Truck Interface
Quick, consistent docking with clear guidance and communication systems improves both safety and throughput.
5. Buildability and Timing Considerations
Design decisions account for construction sequencing, consent processes, and procurement realities – not just performance.
Why This Matters for Food Processing Operations
For facilities like Golden Bay Fruit, the loading dock directly impacts:
- Product quality and handling conditions
- Operational efficiency and turnaround times
- Health and safety performance
- Long-term maintenance requirements
Investing in a well-designed dock system helps ensure the facility can scale confidently, without introducing avoidable operational bottlenecks.
A Practical Outcome
Developed over several months and finalised in October 2021, this project reflects a practical, customer-led approach to dock design – balancing performance requirements with real-world constraints.
As a repeat customer project, it also highlights the value of working with a partner who understands both technical requirements of dock systems and the operational realities of food production environments.
Thinking About Your Own Dock System?
If you’re planning a new facility or upgrading an existing one, the key question isn’t just what products you need – it’s:
👉 What should a “good” dock system look like for your operation?
Getting that right early can save significant time, cost, and complexity down the track.
