What is U-Value vs R-Value When it Comes to Door Insulation?

To understand how insulation works, it is first necessary to explain the different ways heat flows through a construction. Physically, heat always moves from areas of high temperature to those at a lower temperature, which is why, in the cold external temperatures of winter, the warmth inside a building will try to escape through walls, doors, windows, roof and floor. In order to perform effectively, an insulation material must reduce this heat flow.

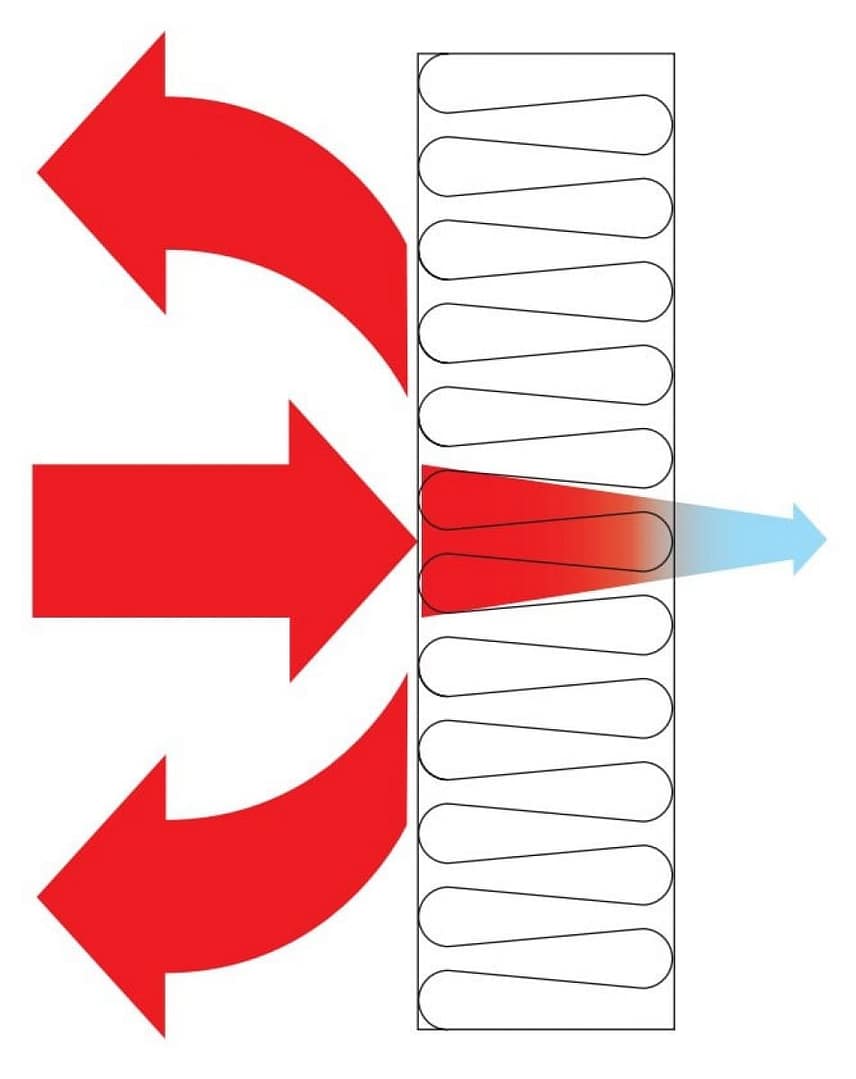

Thermal Resistance (R-Value)

The thermal resistance rating or R-Value is the measure used most commonly in the building and construction industry to determine a specific material’s ability to resist the transfer of heat, and is the inverse to thermal conductivity (k-value).

The higher the R-Value the better thermal resistance the product will provide, and the more energy you will save. Units: m2K/W.

R-Value = Thickness (m) / Thermal conductivity (W/mK)



Thermal Transmittance (U-Value)

Thermal transmittance, also known as U-value, is generally used to rate door or window units and is the rate of transfer of heat through one square metre of a structure divided by the difference in temperature across the structure. It is expressed in watts per metres squared kelvin, or W/m²K. The better insulated a door is, the lower the U-value will be.

In its simplest form, a U-value is calculated by establishing the thermal resistance of each layer in the construction element and adding them together to provide a total resistance (TR) value. The U-value is calculated from the reciprocal (that is, U = 1/R and R = 1/U) of the combined resistances of the materials in the element, including any airspaces and surface resistance values.

For instance, a door with a total thermal resistance (R-Value) of 3.50m2K/W would have a U-value of:

1  /  3.5 = 0.29W/m2K

A high R-value means a low U-value but the real differences between them are far more complex.

U-value is more of an engineering term which describes thermal performance. It has traditionally been applied to materials such as door systems which are made up of a number of different materials. R-value is usually used in reference to construction components that are made up of only one material.

U-values represent the transfer of energy through conduction and radiation while R-value only represents resistance to heat transfer.

Top 3 Tips:

• Higher numbers are good when comparing the Thermal Resistance and R-Values of products.
• Low numbers are good when comparing U-Values.
• The U-Value is the most accurate way to judge a material’s insulating ability, taking into account all the different ways in which heat loss occurs, however, it is more difficult to calculate.
