Quick answer: For high-cycle cold storage openings – freezer entries, chiller access points, busy forklift routes – rapid doors outperform roller shutters on energy performance because they open and close faster, reducing the time warm air can enter your cold zone. Roller shutters have a legitimate role in security and low-frequency access applications, but in high-traffic cold storage, their slower cycle speed works against your refrigeration system every time they operate.
How Each Door Type Works in a Cold Storage Environment
Understanding the energy difference starts with understanding how each door operates – not just how it looks.
Roller shutters: designed for security, not speed

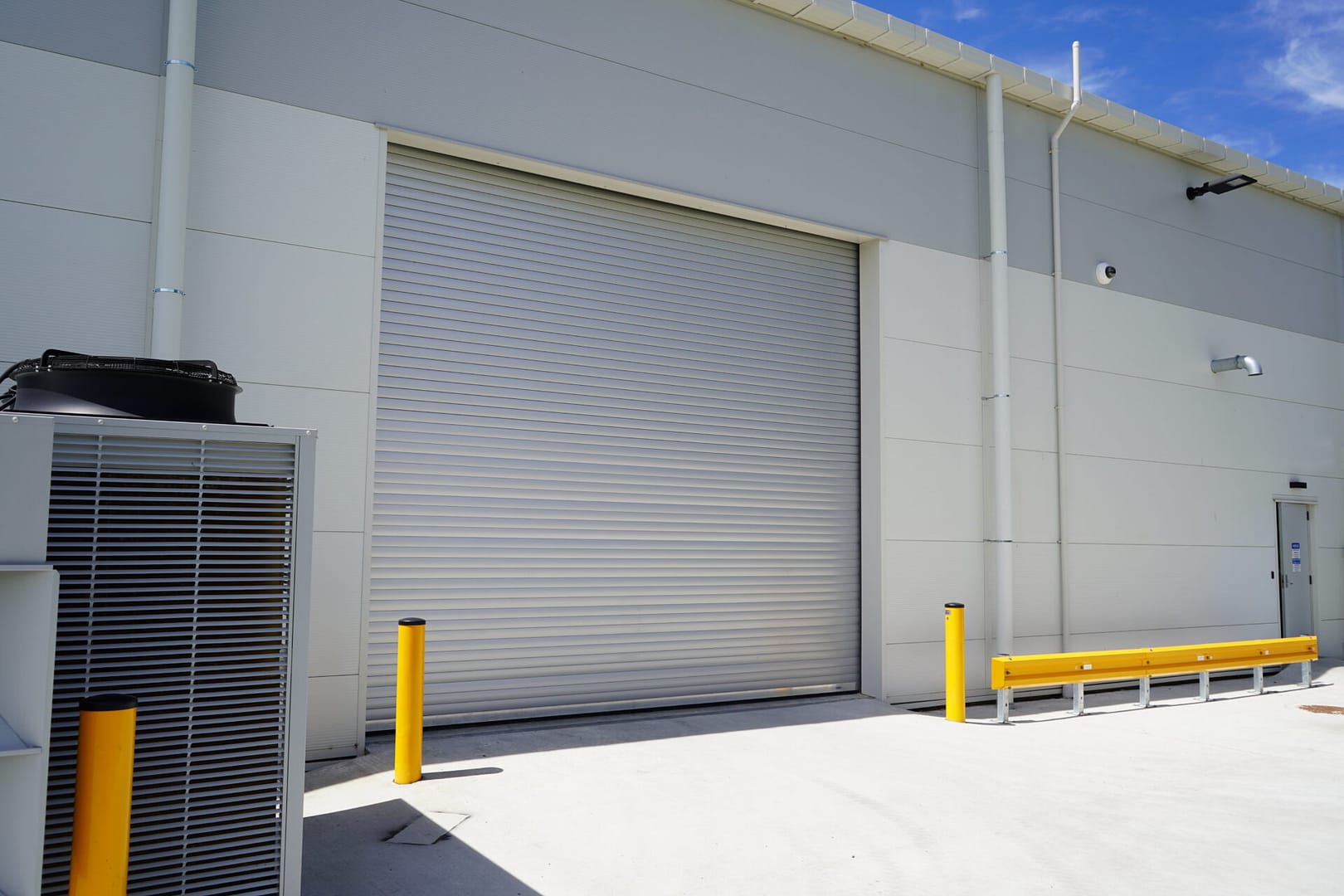

A roller shutter works by coiling interlocking steel or aluminium slats into a housing above the opening. When a vehicle approaches, the door winds up. When the vehicle clears, it winds back down.
Ulti supplies standard roller shutters, insulated roller shutters, and fire-rated roller shutters for a range of commercial and industrial applications. The insulated version adds dual-walled foam-filled slats for improved thermal and acoustic performance – a genuine improvement over a standard steel shutter.
But here’s the operational reality: Ulti’s insulated roller shutter doors are rated for low to medium traffic and have a maximum opening speed of 1.2 m/s. They’re built for security and general industrial use. They’re not positioned for cold storage – and there’s a good reason for that.
Rapid doors: designed for continuous cycling
A rapid door – also called a high-speed door – uses a lightweight fabric or insulated curtain on a motorised system that opens and closes in seconds. Ulti’s high speed rapid doors cover a wide range of applications, including models purpose-built for cold storage environments.
The Ulti Roll Door, for example, opens at up to 2.5 m/s – more than double the speed of an insulated roller shutter. Specialist cold storage rapid doors like the Ulti DuoTherm and Ulti DuoTherm Air Door add double-curtain insulation, integrated air barriers, and heated frame systems to manage sub-zero conditions.
These doors are designed to open fast, close fast, and do it hundreds of times a day without compromising the cold zone each time.
Why the Door Opening Is a Bigger Energy Problem Than Most Operators Realise
Every time a door opens in a cold store, three types of heat transfer work against your refrigeration system:
- Convection – warm air exchanges with cold air through the open doorway
- Conduction – heat passes through the door material when it’s closed
- Infiltration – air moves through gaps and poor seals around the door perimeter
Of these three, infiltration during door operation is the dominant factor in a high-traffic facility. Research published in ASHRAE Transactions by Massey University researchers, based on measurements across seven New Zealand commercial cold stores, confirmed that air infiltration is directly proportional to fractional open time. The less time a door is open during each cycle, the less air enters.
Further research published in a 2019 journal review confirmed that in industrial refrigerated facilities, air infiltration can represent more than half of the total refrigeration load.
Refrigeration already accounts for 60–80% of total energy consumption in a cold storage facility. So anything that reduces refrigeration load – including reducing door open time – has an outsized impact on the power bill.
The mechanism is straightforward. When warm, humid outside air enters the cold zone, it condenses and freezes on contact with cold surfaces. Ice forms on floors, walls, and evaporator coils. Ice on coils forces the refrigeration system to work harder. More frequent defrost cycles increase energy consumption further and reduce refrigeration capacity.
Ice on floors isn’t just an energy indicator. It’s a safety hazard.
One New Zealand cold storage operation – Coolpak Coolstores in Christchurch – experienced exactly this in their -20°C holding freezer. Despite running defrost cycles every four hours, temperature instability continued. Forklift operators reported hazardous floor conditions, reduced visibility, and regular disruptions. The problem traced back to the door opening, not the refrigeration system. Following installation of a specialist rapid door system, the ice and instability were resolved.
Rapid Doors vs Roller Shutters: A Direct Comparison
| Criteria | Insulated Roller Shutter | Cold Storage Rapid Door |
|---|---|---|
| Opening speed | 1.2 m/s (max) | 2.5–3 m/s |
| Thermal performance (closed) | U-Value 3.9 W/m²K | 2.0 W/m²K (DuoTherm Air Door) to 0.23 W/m²K (Ulti Flex) |
| Cold storage positioning | Low to medium traffic, general industrial | Purpose-built for cold storage and freezer applications |
| Air infiltration per cycle | Higher – slower operation = longer open time | Lower – faster cycle = less warm air exchange |
| Impact resistance | Slat replacement possible; impact can compromise seal | Self-repairing curtain designs available; seal maintained after minor impacts |
| Defrost cycle risk | Higher – slower door allows more humid air ingress | Lower – faster cycle reduces moisture entering cold zone |
| Traffic capacity | Low to medium | High – designed for continuous forklift and pedestrian cycling |
| Ideal application | Perimeter security, low-frequency access, general industrial | High-cycle freezer and chiller openings |
The thermal figures tell part of the story – a rapid door’s U-value when closed can be significantly better than an insulated roller shutter’s. But in a high-traffic environment, cycle speed matters more than insulation value alone. A door can be well-insulated when closed and still allow significant heat gain if it stays open too long per cycle.
High-speed rapid doors have been shown to reduce refrigeration workload by 20–30% compared to slower traditional alternatives – a difference that, at the scale of most NZ cold storage operations, translates directly into measurable energy savings.
When Roller Shutters Still Make Sense
Roller shutters are a sound choice in the right application. For most cold storage sites, that means:
- External perimeter and security access – where security is the primary requirement and temperature control is not a factor
- Low-frequency openings – access points used only a few times a day, where cumulative open time is too low to justify a rapid door investment
- General warehouse or ambient areas – zones adjacent to the cold store where cold chain integrity is not at stake
- Fire-rated separations – where a fire door is required and traffic frequency is low
- Loading bay security shutters – where a dock seal or dock shelter is handling the thermal separation at the truck interface
The right approach for most facilities isn’t to replace every roller shutter. It’s to identify which openings are actively working against cold chain integrity – and address those first.
When Rapid Doors Are the Right Call
Consider specialist freezer and coolroom doors when:
- Your freezer or chiller openings are used frequently – if a door cycles more than 30–50 times a day, its operating speed becomes an energy variable that compounds across every shift
- Ice or frost is building up inside the cold store – persistent ice is almost always caused by moisture ingress through the opening, not a refrigeration fault
- Defrost cycles are running more frequently than expected – if defrost is running every few hours and temperature instability continues, the door opening may be the cause
- Floor safety incidents are occurring near door openings – ice on the floor is both an energy symptom and a workplace safety risk
- Energy costs are rising without a clear cause – particularly if the refrigeration system appears to be running harder than the facility’s temperature requirements would suggest
- You need to make a capital case to management – the ROI on a cold storage rapid door upgrade is quantifiable, and a site assessment can produce the numbers before any commitment is made
These are the temperature control challenges that door selection can directly address. The door isn’t always the first place an operator looks – but in many cases, it’s where the answer is.
How to Calculate What Your Current Doors Are Costing You
The starting point is simple: how long is each door open per cycle, and how many cycles happen each day?
A door that takes 10 seconds to open and close, and cycles 80 times a shift, is exposed for over 13 minutes per shift. A rapid door completing the same cycle in 3 seconds cuts that exposure to under 4 minutes. That’s a significant difference in air exchange – particularly when the temperature differential between zones is large.
Signs to look for in your facility:
- Ice or frost inside the cold store, particularly near the floor and around door frames
- Condensation on walls or ceiling near the door opening
- Defrost cycles running frequently or with unusually long run times
- Staff or forklift operators reporting cold drafts near the opening
- Refrigeration compressors running harder or longer than expected for the facility size
A site assessment looks at each opening individually – not just the doors, but how they’re activated, their dwell times, the temperature differential they’re managing, and the traffic they’re handling. No two openings are the same, and the right door for one part of your cold storage operations may not be the right door for another.
Ulti’s energy savings calculator is designed to quantify potential savings at a specific opening, giving you a site-specific figure to take into a capital decision. Calculate your cold storage energy savings or book a free site consultation to have Ulti’s team assess your facility in person.
FAQ Section
Can roller shutters be used in cold storage environments?
Roller shutters can be installed in cold storage facilities, but they’re not designed for cold storage duty. Standard roller shutters offer no meaningful thermal resistance. Insulated roller shutters offer improved performance when closed (U-Value 3.9 W/m²K) but their maximum operating speed of 1.2 m/s makes them better suited to low to medium traffic industrial applications rather than high-cycle freezer openings. For cold storage with regular forklift or pedestrian traffic, purpose-built rapid doors perform significantly better.
How much energy can I save by switching from roller shutters to rapid doors?
The saving depends on your door’s current open time, traffic frequency, and the temperature differential it’s managing. High-speed rapid doors have been shown to reduce refrigeration workload by 20–30% compared to slower traditional door types. A site-specific assessment and energy savings calculation will give you a more accurate figure for your facility before you make any commitment.
What makes a rapid door better than an insulated roller shutter in a freezer?
The primary factor is cycle speed. Air infiltration into a cold store is directly proportional to how long the door is open during each cycle – research by Massey University, published in ASHRAE Transactions, confirmed this across seven NZ cold stores. A rapid door that cycles in 2–3 seconds allows substantially less warm air in than a roller shutter taking 8–10 seconds to complete the same cycle. Over hundreds of cycles a day, that difference has a direct impact on refrigeration load.
Will upgrading to rapid doors disrupt operations?
Ulti installs cold storage doors in live operating environments regularly. The level of disruption depends on the opening, the product being installed, and your operational schedule. A site consultation will confirm the installation approach and expected downtime for each opening before any work begins.
Do I need to replace all my roller shutters at once?
No. The most practical approach is to identify which openings are causing the most energy loss and address those first. A site assessment maps each opening against its traffic frequency, temperature differential, and current performance – giving you a prioritised list rather than a blanket replacement programme.
