High-Speed Conveyor Doors for Automated Cold Storage: What You Need to Know

Every automated cold storage facility is designed around one goal: moving product quickly while maintaining strict environmental control. The challenge is that every pallet movement, conveyor transfer, and automated retrieval creates a potential point of heat gain, oxygen ingress, and operational delay. In facilities operating around the clock, door performance becomes a critical part of the automation system itself.

Modern automated cold storage facilities operate at a pace that standard door systems were never designed to match. Conveyors run continuously. Automated storage and retrieval systems (ASRS) operate on tight sequencing. Temperature and atmospheric conditions must be held within strict tolerances at all times, not just during peak hours or on busy shifts.

In this environment, the wrong door creates compounding problems: heat infiltration, oxygen ingress, conveyor bottlenecks, and a fire prevention system that cannot hold its design conditions. The right insulated conveyor door, properly integrated from the design phase, eliminates those problems before they can take hold.

For operators investing millions into automated cold storage infrastructure across New Zealand and Australia, these issues affect far more than operational efficiency. They can impact product quality, increase energy consumption, compromise fire prevention systems, and create unnecessary costs across the life of the facility.

This article explains what insulated conveyor doors are, why high-speed airlock door technology is specified for automated cold storage environments, what to look for when evaluating a solution, and why getting the door specialist involved early makes a practical difference to project outcomes.



Why Automated Cold Storage Warehouses Create Unique Door Requirements

Standard cold storage doors, even quality high-speed options, are designed for conventional environments where a forklift or pedestrian triggers the door cycle. Fully automated cold storage is different in almost every relevant way.

Throughput volumes are significantly higher. An automated high-bay cold store can process tens of thousands of pallet movements per day. Every door in the conveyor path opens and closes at high frequency, continuously. A door rated for a few hundred daily cycles will not perform reliably at two thousand, and in an automated system, an unplanned door failure is a production event, not a maintenance inconvenience.

Temperature stability is non-negotiable. According to ASHRAE benchmarks, refrigeration accounts for approximately 75% of a cold store’s energy consumption. Of that load, up to 50% can be attributed to air infiltration at door openings. In a high-throughput automated facility, even minor air infiltration per cycle compounds across thousands of daily movements. Temperature recovery times increase, refrigeration systems work harder, and the risk to product quality rises accordingly. Maintaining temperature integrity protects product quality, supports cold chain compliance, and reduces unnecessary strain on refrigeration equipment.

Atmospheric conditions must be actively maintained. Many modern automated cold storage facilities, particularly high-bay ASRS installations, incorporate oxygen reduction systems (ORS) as part of their fire prevention design. In these environments, doors are not just managing temperature. They are managing the facility’s atmospheric integrity. Every uncontrolled opening is a potential oxygen infiltration point. Maintaining that integrity protects the ORS system, helps safeguard stored inventory, and reduces operational risk.

In New Zealand and Australia, automated cold storage investment is growing across export-linked food supply chains, including dairy, red meat, seafood, poultry, produce, and temperature-controlled grocery distribution. Cold chain integrity, labour availability, energy cost, site footprint, and compliance pressure are all pushing operators toward more automated freezer and chiller infrastructure.

These factors together mean that a conventional high-speed door, however well-engineered for standard use, will not meet the requirements of a fully automated cold storage environment.



Why Conveyor Doors Are Critical in Automated Cold Storage

In an automated cold storage warehouse, the conveyor door is not a passive opening in the building envelope. It is part of the material handling system. Every product movement through a freezer wall, chiller wall, airlock, or controlled atmosphere zone depends on the door opening quickly, sealing reliably, and sequencing correctly with the conveyor infrastructure around it.

A conventional cold room door is usually selected around access. An insulated conveyor door must be selected around flow. It needs to match the conveyor width, product envelope, pallet orientation, transfer speed, and control logic of the wider automation system.

This is why automated freezer warehouses and ASRS facilities require a different approach to door specification. The door needs to support continuous product movement without allowing temperature gain, oxygen ingress, or automation delay to build up across repeated cycles.

For facilities using conveyor systems between temperature zones, the key question is not simply whether the door opens and closes quickly. The real question is whether the insulated conveyor door can maintain environmental separation while keeping pace with the automated handling system. If it cannot, the door becomes a bottleneck, an energy loss point, and a source of operational risk.



Oxygen Reduction Systems: Why They Change the Door Specification Entirely

An oxygen reduction system (ORS) prevents fire by maintaining the oxygen level within a facility below the ignition threshold for the materials stored there. Rather than suppressing a fire after ignition, ORS prevents ignition from occurring. The design, installation, operation, and maintenance of these systems is governed internationally by ISO 20338:2019.

ORS operates by introducing nitrogen-enriched air into the controlled space, continuously displacing oxygen to a managed level. In automated storage and retrieval systems, this approach is increasingly specified over traditional suppression systems. Research published by Zurich Nordic (February 2023) explains why: in a dense ASRS environment, traditional sprinklers can be ineffective because firefighters cannot physically reach the fire seat within a high-bay racked store. ORS removes the ignition condition before fire can take hold, which is a fundamentally proactive approach to fire prevention rather than a reactive one.

For ordinary combustibles, including pallets, cardboard, shrink-wrapped product, Zurich Nordic recommends maintaining oxygen at or below 11.1%. For plastic-intensive environments, the recommended threshold is 13.0%.

What this means for the door specification:

The Global Cold Chain Alliance Controlled Environment Building Association (GCCA-CEBA) White Paper on fire protection in controlled environments (September 2024) is direct on this point: in an ORS facility, every opening is a potential point of oxygen infiltration or exfiltration. Openings that take too long to close, seal imperfectly, or cycle without interlock coordination with the automation system allow oxygen to enter, compromising the system’s maintained atmospheric level and placing additional demand on the nitrogen supply.

The White Paper specifies that high-traffic openings in ORS environments must use interlocked airlocks, sequenced with the facility’s automation system, to maintain atmospheric integrity.

A standard high-speed door is built to limit airflow. It does not eliminate it. In an ORS environment, that distinction determines whether the atmospheric design holds.



What Is an Ulti Insulated Conveyor Door?

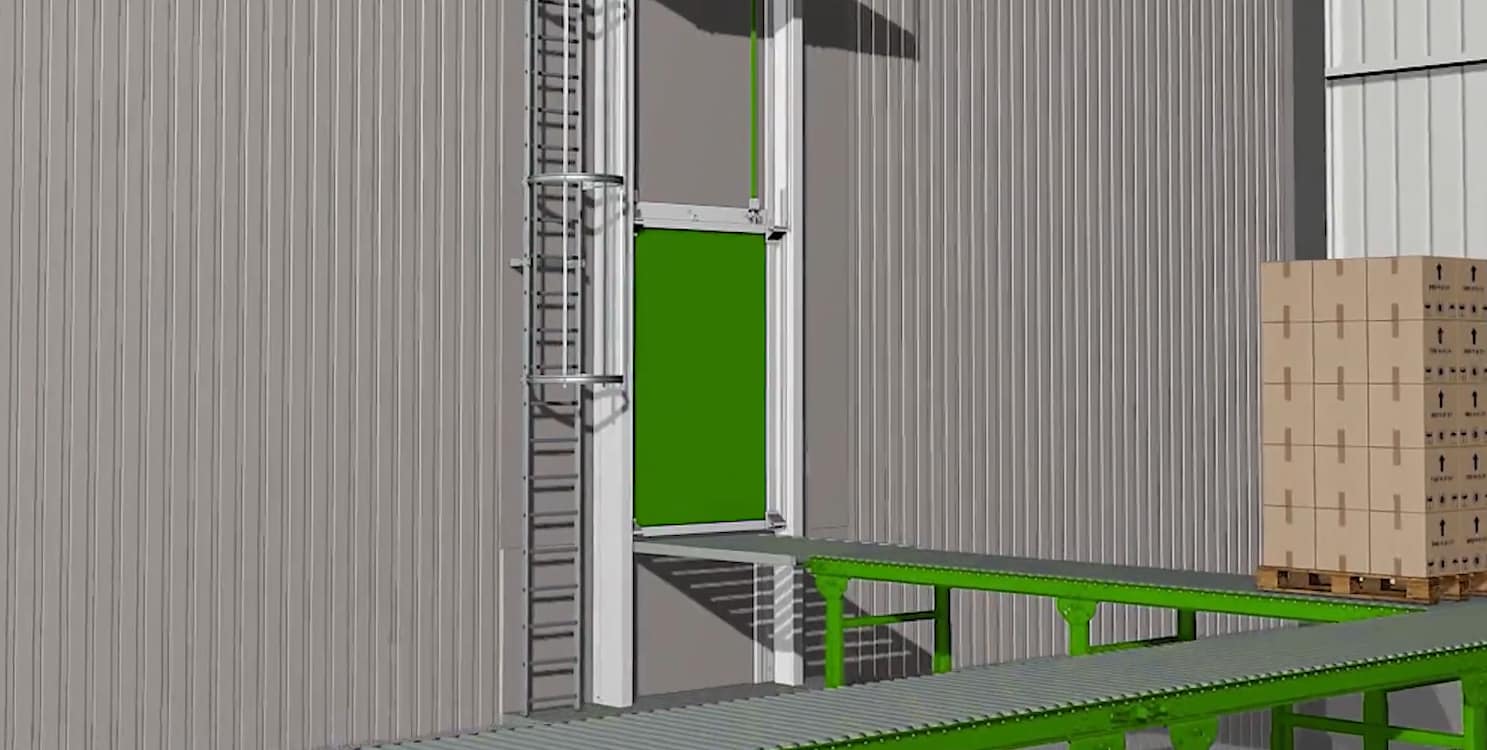

The Ulti Insulated Conveyor Door is a high-speed airlock door designed for automated cold storage warehouses, conveyor systems, ASRS facilities, and oxygen reduction system environments.

It combines ultra-fast operating speeds with a hermetic seal – a complete, airtight closure across all four sides of the door opening. Unlike a conventional high-speed door, which uses a brush or compression seal designed to limit airflow, an insulated conveyor door with high-speed airlock technology achieves a hermetic seal on every cycle, at very high speeds, in freezing conditions, within an automated system that never stops.

The characteristics that define this product category:

• Hermetic sealing on all four sides – all-round rubber profiles create a complete seal across the full door perimeter, preventing air and oxygen infiltration rather than simply reducing it
• Thermal bridge-free construction – no thermal bridging pathways through the door leaf or frame, preventing condensation and heat conduction through the door structure itself
• Temperature rating to -40°C – built for deep-freeze environments, not just chiller applications
• Automation-first design – engineered to integrate with conveyor systems and facility automation controls; not designed for pedestrian or staff use
• High cycle durability – built for the continuous movement volumes of automated facilities
• OA/ULO confirmed suitability – confirmed for use in oxygen-attenuated (OA) and ultra-low oxygen (ULO) environments

Each of these characteristics has a direct bearing on facility uptime, energy performance, product integrity, and fire prevention. They are not a marketing list. They reflect what the automated cold storage environment actually demands of a conveyor door.



Built for Demanding Automated Cold Storage Environments

High-speed airlock door technology is not emerging technology. It is already used in demanding automated cold storage environments where temperature control, atmospheric integrity, and automation uptime are central to the operating model.

Ulti Group supplies the Salco AL-VK as the Ulti Insulated Conveyor Door, a purpose-built high-speed airlock door confirmed for OA and ULO environments, rated to -40°C, and built to a durability standard of more than one million movements. It is used by some of the world’s largest cold storage operators, including NewCold, Lineage, and Americold. These operators specify airlock technology because maintaining atmospheric integrity, energy efficiency, and automation uptime is critical to their business model.

As automation investment continues to grow across New Zealand and Australia, these same design principles are becoming more relevant to local cold chain infrastructure. Operators in dairy, red meat, seafood, poultry, produce, grocery distribution, and third-party cold storage are all facing the same core pressure: move more product, with fewer manual touches, while maintaining strict environmental control.

In a fully automated system, a conveyor door may complete several thousand cycles per day. A door that requires frequent intervention or early replacement creates production disruption that no automated operation should have to absorb.



Why Door Reliability Matters in ASRS Facilities

In a forklift-operated cold store, a door fault can often be worked around for a short period. In an ASRS facility, the same fault can stop a product flow path, delay automated retrievals, and force manual intervention into a system designed to avoid it.

This is why door reliability is not a maintenance-only issue in automated cold storage. It is a production issue. A failed ASRS door can create conveyor stoppages, missed dispatch windows, product handling delays, and unnecessary pressure on operations teams.

High-cycle durability matters because the door is being asked to perform continuously, not occasionally. The real test is not whether it can open quickly in ideal conditions. The test is whether it can keep sealing, cycling, integrating, and recovering at speed across thousands of movements per day in a cold, automated, controlled atmosphere environment.

For NZ and Australian operators dealing with tight transport windows, export schedules, labour constraints, and high energy costs, avoiding downtime is one of the strongest reasons to specify the right insulated conveyor door at design stage.



What Should You Look for In an Automated Cold Storage Door System?

Not all cold storage doors are designed for automated environments.

Many conventional cold store doors perform well in forklift-operated facilities but struggle to meet the demands of a modern automated cold storage warehouse. In facilities using ASRS cold storage systems, doors may cycle thousands of times per day while maintaining strict temperature and atmospheric conditions.

When evaluating a door solution for an automated freezer warehouse, high-throughput cold storage facility, or conveyor-fed ASRS system, five factors are worth examining carefully.

1. Sealing Performance

Every opening creates an opportunity for heat gain and air exchange. The effectiveness of the door seal directly affects refrigeration load, temperature recovery times, and the ability to maintain controlled atmospheric conditions. For facilities using an oxygen reduction system (ORS), sealing performance is particularly important. Oxygen infiltration increases nitrogen system demand and can affect atmospheric stability across the entire facility.

2. Automation Compatibility

In an automated facility, the door becomes part of the wider automation system. Look for insulated conveyor door systems that can integrate with conveyor controls, warehouse management systems (WMS), programmable logic controllers (PLC), and interlock logic. Poor integration can create unnecessary bottlenecks within the material handling process.

3. Cycle Durability

A door operating in a conventional warehouse may complete a few hundred cycles per day. An automated warehouse door operating within an ASRS system may complete several thousand. Cycle durability should always be assessed against the expected throughput requirements of the facility, not against a general benchmark.

4. Thermal Performance

Insulation remains a critical consideration in both chiller and freezer applications. The door should be designed to minimise thermal bridging while maintaining reliable operation at the intended operating temperature. A door that conducts heat through its frame or leaf adds to refrigeration load on every cycle.

5. Suitability for Controlled Atmospheres

Where a facility uses oxygen reduction technology, not every cold storage door will be suitable. Engineers should confirm whether the selected conveyor door solution is appropriate for oxygen-controlled environments and whether it can form part of an effective airlock strategy.



Where are Ulti Insulated Conveyor Doors Used?

Ulti Insulated Conveyor Doors are most commonly specified where environmental control and high-volume automated movement must work together. In each case, the goal is the same: maintaining strict temperature and atmospheric conditions without slowing product throughput.

In each case, the goal is the same: maintaining environmental control while allowing high-volume automated product movement.



Why Getting the Door Specialist Involved Early Matters

By the time construction starts, many of the decisions that affect long-term facility performance have already been made. In automated cold storage projects, the conveyor door system is not something to specify once the building and conveyor layout are finalised. By that point, the options for optimal integration have already narrowed, and the cost of late changes is significantly higher than early coordination.

We have seen projects where conveyor layouts, door openings, and automation sequencing were developed independently, creating costly redesigns during construction. Early coordination between automation suppliers, facility engineers, and door specialists helps eliminate these issues before they affect programme timelines.

Ulti Group is typically involved from the design phase of automated cold storage projects, working alongside facility engineers and automation system suppliers to ensure the insulated conveyor doors are integrated directly into the architectural and conveyor plans from the outset.

Early involvement addresses a set of practical issues that consistently arise when door specification is left to the procurement stage:

Opening dimensions and conveyor clearances. Conveyor system dimensions, pallet orientations, and product flow paths determine the door size and configuration. These need to be confirmed at design, not adjusted at fit out.

Automation sequencing and interlock logic. The door’s interlock logic must be coordinated with the facility’s WMS or PLC system. This is an engineering coordination task that cannot be resolved during installation.

ORS atmospheric modelling. In facilities with an oxygen reduction system, the door specification directly affects the nitrogen demand calculation. A door that seals poorly means a higher continuous nitrogen load, a running cost baked in at design stage, not correctable after commissioning.

Structural and frame integration. Where the door sits in the building envelope, how the frame is anchored, and how the rail system integrates with structural elements all require coordination before the building programme is locked.

Getting these details right from the start means the completed facility performs as the design intended – without the modifications, delays, or cost overruns that come from resolving conveyor door integration problems under construction programme pressure.

Once conveyor layouts, openings, and automation sequencing are finalised, changing door specifications becomes expensive and disruptive. If you are at design stage, talk to an Ulti cold storage specialist before conveyor layouts are locked in.



Other Cold Storage Door Solutions from Ulti Group

Ulti Insulated Conveyor Doors are the right choice when hermetic sealing, automation integration, and ORS compatibility are all required. For other cold storage applications, including conventional high-speed access, fire-rated separation, or high-traffic chiller environments, Ulti Group offers a range of purpose-built door systems:

• Ulti Spiral Cold Door – High-speed spiral door engineered for cold environments, combining fast cycle times with strong insulation performance.
• Ulti DuoTherm Door – Insulated sliding door for temperature-controlled warehousing and chiller applications.
• Ulti DuoTherm Air Door – Insulated sliding door with integrated air curtain for environments where full closure between every cycle is not required.
• Fastrax FR Door – Fire-rated high-speed door for environments where compartmentation is a compliance requirement.
• Ulti Flex Door – Flexible PVC door for high-traffic cold storage environments where freezer-grade sealing is not required.

Browse the full Freezer and Coolroom Doors range to explore the complete range for cold storage applications. For more on the energy performance case for high-speed door selection, read How High-Speed Doors Save Energy in Coolstores.



FAQ’s

What is an insulated conveyor door? An insulated conveyor door is a purpose-built door system used where conveyors move product between temperature-controlled areas. In automated cold storage facilities, the door needs to open rapidly, close reliably, seal tightly, and integrate with the conveyor control system. The Ulti Insulated Conveyor Door uses high-speed airlock door technology to provide a hermetic seal across all four sides of the opening.

What is a high-speed airlock door? A high-speed airlock door is a purpose-built door system that combines very high operating speeds with a hermetic seal, a complete, airtight closure across all four sides of the opening. Unlike a standard high-speed door, which limits airflow, an airlock door eliminates it. This makes them the correct specification for fully automated cold storage, oxygen-reduced environments, and any application where atmospheric control is a requirement.

What is the difference between an insulated conveyor door and a standard high-speed cold storage door? The key difference is the sealing standard and automation purpose. A standard high-speed door typically uses a brush or foam perimeter seal that significantly reduces air exchange but does not achieve a hermetic result. The Ulti Insulated Conveyor Door uses all-round rubber profiles to achieve a hermetic seal on all four sides of the door opening, every cycle. The door leaf construction, thermal bridge-free throughout, with frame heating in freezer applications, is also built to a higher specification to maintain seal integrity at temperatures down to -40°C.

Can insulated conveyor doors be used in oxygen reduction system (ORS) environments? Yes. The airlock door we supply is confirmed suitable for use in oxygen-attenuated (OA) and ultra-low oxygen (ULO) environments. This is a specific design and materials requirement, not all high-speed doors carry this confirmation. In ORS facilities, the GCCA-CEBA White Paper (September 2024) and ISO 20338:2019 both specify that high-traffic openings must use interlocked airlocks to maintain atmospheric integrity.

What temperature rating do these doors carry? Ulti Group’s insulated conveyor door is rated for operating temperatures to -40°C. Leaf thickness is selected based on application: 100mm for chiller applications, 140mm for freezer and deep-freeze environments. Frame heating is included as standard for freezer door configurations.

How do insulated conveyor doors integrate with a conveyor or automation system? The doors are designed for automation integration and are not for pedestrian or staff use. Integration involves coordination between the door’s control system (DC 4000 Basic or Extended) and the facility’s WMS or PLC. Interlock sequencing, timing, and emergency stop functionality are configured as part of the commissioning process. For this reason, Ulti Group recommends involvement at the design phase rather than at installation – the interlock logic needs to be part of the automation system design, not retrofitted to it.

How long will an insulated conveyor door last in a high-cycle automated environment? The airlock door has a confirmed durability rating of more than one million movements without issues. In a fully automated cold store running thousands of cycles per day, door reliability and longevity are as important as initial specification. Frequent maintenance interventions or early replacement are not acceptable in a continuous automated operation.

When should a door specialist be involved in an automated cold storage project? At the design phase – not at procurement. Opening dimensions, conveyor clearances, interlock logic, atmospheric modelling in ORS environments, and structural integration all require coordination before the building programme is locked. Ulti Group works alongside facility engineers and automation system suppliers from the design stage, ensuring the door system is integrated into the project from the outset rather than fitted around a fixed design.

Are these doors available in a configuration suited to food processing environments? Yes. A stainless-steel version of the airlock door is available for hygiene-critical food processing applications, including fish, seafood, poultry, meat processing, and industrial bakeries. The food-safe glass-fibre reinforced polyester facing on the standard door leaf also meets hygiene requirements for most cold storage environments.
