Most industrial facility projects treat the loading dock as a late-stage detail. The floor gets poured, the façade gets drawn, building consent gets lodged – and then someone opens a product catalogue and picks a dock leveller.
Loading dock design in NZ is routinely treated as a product decision rather than a building decision. That assumption is the most common reason loading docks underperform from the day they’re first used.
A dock that wasn’t designed for the facility, the fleet, and the operation doesn’t just create inconvenience. It creates energy loss, safety risk, compliance exposure, and loading delays that accumulate across every shift the facility runs.
This article is for architects, specifiers, and project managers who are in the room before those decisions get locked in. It covers what dock design actually involves, what questions to ask, and why getting a specialist invovled early changes the outcome
Key Takeaways
- Loading dock design is a building decision – it affects structure, geometry, and building compliance, not just equipment
- NZ truck and trailer floor heights vary by up to 700mm – docks must be specified for the actual fleet using the site
- The Ulti Cooldock has a 36-week lead time from shop drawing sign-off – early decisions protect your programme
- For cold chain facilities, dock design is a compliance requirement under MPI’s Code of Practice for Cold and Dry Stores
- Getting a specialist involved at concept or developed design stage is when the most value can be added – and when the fewest constraints exist
The Dock is a Building Decision, Not a Product Decision
Definition
What is loading dock design?
Loading dock design is the process of determining how a loading dock should be configured for a specific facility, fleet, and operation – before equipment is selected. It covers dock design, structural requirements, floor and pit levels, truck access geometry, temperature zone transitions, door specification, and site safety layout. In New Zealand, dock design must account for significant truck and trailer height variation that does not exist in the same way in other markets.
The dock is where logistics meets architecture. It’s where trucks interact with structure, where temperature zones meet ambient air, where forklifts cross between warehouse floors and trailer beds, and where the majority of a facility’s safety risk concentrates. Getting it right touches multiple building consent areas – covering structure, fire strategy, access routes, external moisture, and user safety – not just the equipment specification.
The decisions that determine whether a dock performs well – floor levels, pit depth, apron space, truck access geometry, temperature zone transitions, façade openings – are all made before a single product is chosen. If a dock specialist isn’t in the room when those decisions are being made, the equipment that follows is working around compromises it never needed to inherit.
In many NZ projects, dock decisions are made too late or with too little operational input. The consequence isn’t always obvious at handover. It shows up six months in, when the leveller can’t reach the trailer bed, the seal leaks temperature every shift, or the truck turning radius doesn’t match the apron space that was designed without the actual vehicle fleet in mind.
What Dock Design Actually Covers
When Ulti gets involved at early design stage, the conversation isn’t about products. It’s about how the facility needs to function – and what that means for the structure being designed around it.
Dock Design – Choosing the Right System for Your Fleet and Operation
Not every dock is the same. The design you choose depends on the vehicles using it, the goods being moved, the temperature environment, and how the facility will operate across its full asset life.
The main dock designs used in NZ include:

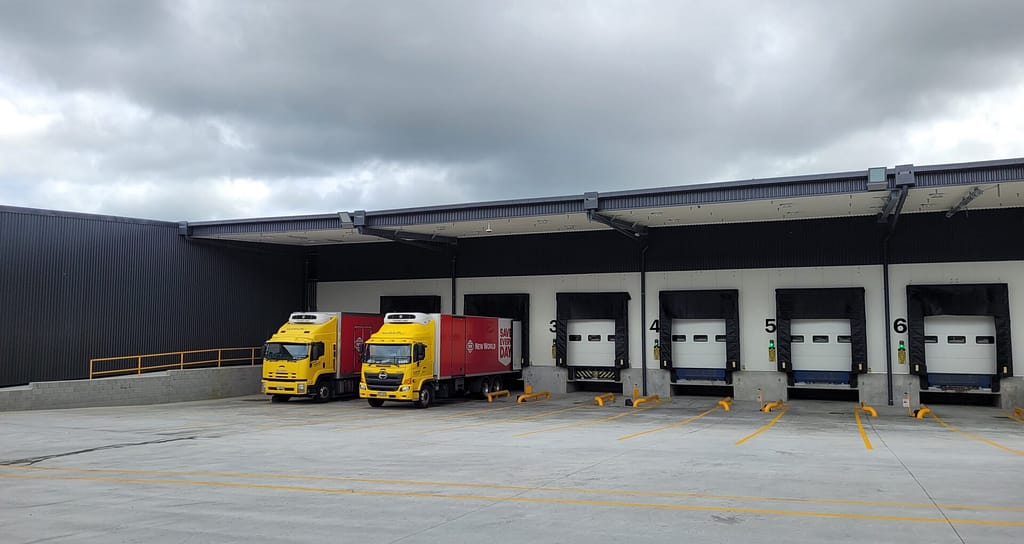

Standard truck docks – suited to distribution and warehouse environments where truck types are relatively consistent and the building can accommodate a recessed dock configuration. For sites like this, the dock count, leveller type, and sealing approach all follow from what the fleet looks like, not the other way around – something we worked through carefully on projects like Foodstuffs Grenada and Hilton Foods.

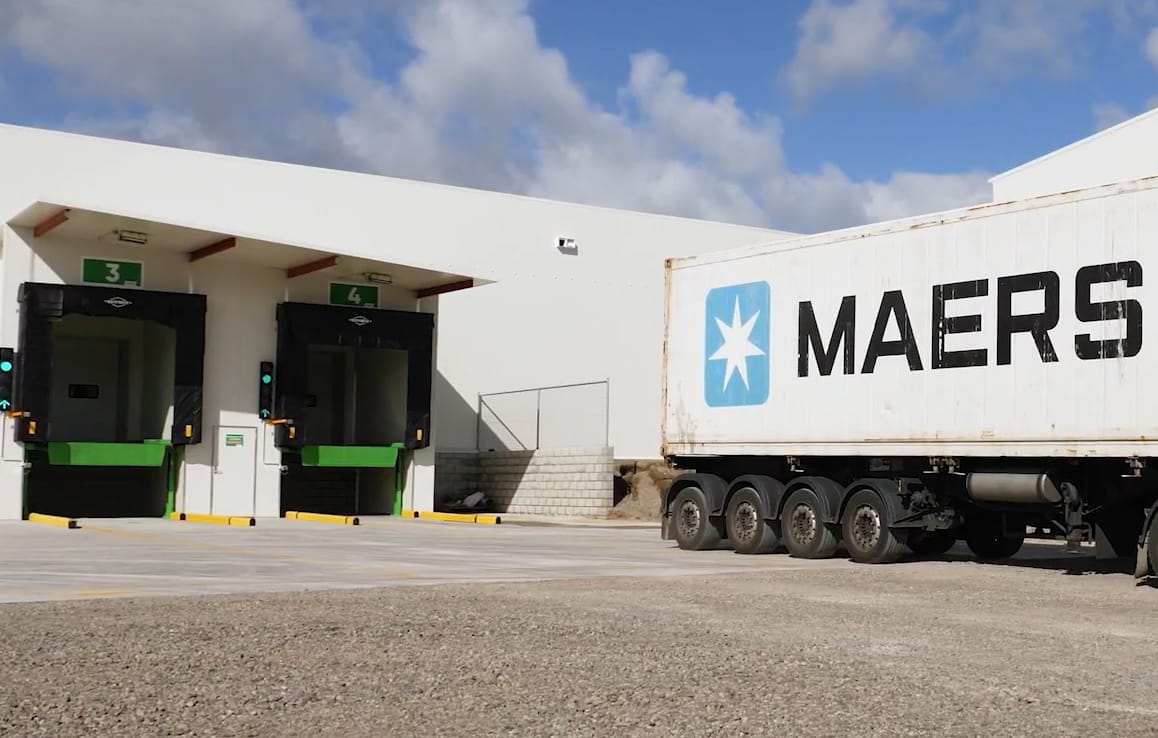

Container-on-truck docks – for facilities receiving ISO containers on trailers. Containers sit at different heights to standard trucks and require a different leveller geometry and sealing approach. The difference the right system makes is significant. Eastpack cut truck loading time from 45 minutes to 8 minutes once their dock was designed properly for the containers they were receiving.
On-grade container loading – a distinctly common configuration in New Zealand, where containers are placed at ground level rather than raised to dock height. Kainui Pack & Cool is a strong example of what a well-designed on-grade system delivers. Loading time dropped from 75 minutes per truck to 20, with around 60% less labour required per load.
Cold chain and high-hygiene docks – for temperature-controlled environments where dock sealing performance, door type, and door sequencing are part of regulatory compliance, not just operational preference. Coolpak Coolstores runs this type of operation, and their dock system – telescopic levellers, inflatable seals, insulated sectional doors, and integrated traffic light controls – reflects exactly how much the dock design contributes to cold chain performance.
NZ Truck and Trailer Variation – Why This Market Is More Complex Than Most
New Zealand’s vehicle fleet creates a design challenge that simply doesn’t exist in the same way in Europe or North America, where truck dimensions are far more standardised.
Here, floor heights across the common vehicle types span a 700mm range:
NZ Truck and Trailer Floor Heights — Common Vehicle Types
Air-ride suspensions can lower trailer floor height by a further 150–200mm at the dock.
Add air-ride suspensions – which can lower a trailer bed by a further 150-200mm at the dock – and the effective height range a dock system needs to handle to become even wider.
A dock leveller specified for the wrong vehicle type won’t bridge the gap correctly. A dock seal specified for a narrower truck range will leak temperature and weather for the life of the facility. These aren’t product problems. They’re design problems that set in before the equipment is ever specified.
Temperature Zones and Cold Chain Integrity at the Dock
For cold storage, food processing, dairy, and distribution facilities handling temperature-sensitive products, the dock is a compliance interface – not just an operational one.
MPI administers a Code of Practice for Cold and Dry Stores that sets out good operating practice for NZ businesses storing animal products. That framework includes how facilities manage temperature across access points – the doors, the seals, and the transitions where product moves from a controlled environment into a loading position.
The dock seal type, the door specification, the door sequencing, and whether an Environmental Load-out Area (ELA) – a temperature buffer zone between a controlled environment and an ambient loading position – is incorporated are all design decisions. Getting them wrong means energy loss, product temperature risk, and compliance exposure on every shift the facility operates.
A dock that looks correct at handover but wasn’t designed for the temperature zone it serves will cost a cold store operator significantly more in energy across the facility’s lifecycle than any saving made by treating the dock as an afterthought.
Safety, Circulation, and Pedestrian Management
Loading docks are high-risk areas. Under the Health and Safety at Work Act 2015 (HSWA), every person conducting a business or undertaking must eliminate or minimise risks so far as is reasonably practicable. WorkSafe NZ takes an explicitly site-specific approach – there is no single prescribed solution. The controls must suit the actual site layout, the vehicles on it, and the workflow patterns of the people using it.
Dock safety is fundamentally a design question. Separating pedestrian routes from vehicle paths, designing for one-way traffic where site geometry allows, positioning truck restraints and communication systems to eliminate rather than simply manage the risk of premature vehicle departure – these are decisions made at design stage, not after the concrete is in.
For a detailed look at what WorkSafe NZ requires and how compliant dock layouts are structured, see our guide on loading dock safety requirements in New Zealand.
How Many Docks Do You Need?
This question gets asked far too often after the building footprint is already committed.
Dock count is calculated from operational demand: the number of trucks arriving per hour, average dock turnaround time, and planned headroom for future growth. Getting those inputs right requires knowing the operation – not just the building footprint. Capped pits and knock-out doors can add flexibility for future expansion, but only if they’re designed in from the start.
Once the slab is poured, the configuration is fixed. Building that flexibility in at concept stage costs far less than retrofitting it later.
The Questions a Dock Specialist Asks Before Anyone Picks a Product
The right starting point in dock design isn’t “which dock leveller?” It’s a set of operational questions that determine what the dock needs to do.
Ulti at Early Design Stage
Questions we ask before anyone picks a product
- Who is the likely tenant or operator – and how do they run their operation?
- What types of trucks or containers will use the facility, now and in ten years?
- What are the approximate floor heights of those vehicles?
- Will the facility handle ambient, chilled, or frozen goods?
- Will container doors need to open inside or outside the building envelope?
- What material handling equipment will cross the dock interface?
- Is this a retrofit, or can the building geometry still be adjusted?
These questions determine what the dock needs to do. The products come after.
These questions don’t require an architect or project manager to become a dock engineer. They require the right specialist in the room early enough to ask them – and experienced enough to do something useful with the answers.
What Happens When Dock Design Is Left Too Late
The consequences of treating the dock as an equipment decision are predictable.
The leveller doesn’t bridge the gap. A leveller specified without knowing the actual vehicle fleet may work for some trucks and fail for others – creating unsafe bridging conditions and slowing every shift that involves the wrong vehicle type.
The seal leaks. A dock seal specified for a narrower vehicle range than the actual fleet allows cold air, heat, weather, and pests through the gap for the life of the facility. In a cold storage operation, that’s a daily cost and a daily compliance risk.
The apron space is wrong. Truck turning circles not accounted for at design stage can’t be recovered once the concrete poured. The result is a dock that trucks can’t reverse into cleanly – or can’t reach at all with certain trailer configurations.
The temperature zone doesn’t perform. A freezer dock that wasn’t designed for its temperature environment – without the right door type, sealing system, or ELA buffer – creates ongoing cold chain risk and energy loss that no operational adjustment can fully correct.
The rework is expensive. When dock issues are identified post-construction, the fix involves multiple consultants, structural works, potential consent amendments, and operational downtime. The cost is always higher than early specialist involvement would have been.
Early involvement produces better docks – and avoids the rework that follows when design decisions are made without specialist input.
What Early Ulti Involvement Actually Looks Like
Getting Ulti involved at early design stage doesn’t mean handing over the project. It means having a specialist in the room when the decisions that determine dock performance are still on the table.
In practice, early Ulti involvement includes:
- Fleet analysis – understanding the vehicles that will actually use the facility and translating that into the dock height, leveller range, seal type, and bumper specification
- Dock design recommendation – identifying which dock system suits the facility’s temperature environment, vehicle fleet, and operational requirements
- Apron space and turning circle input – confirming that site geometry supports the trucks that will actually use the dock
- Dock number sizing – calculating demand, planning for growth, and designing in flexibility
- Temperature zone and door sequencing advice – particularly for cold chain facilities where the dock is a compliance interface
- Specification and design file support – Ulti provides downloadable specs and design files for architects and project teams
- Post-installation planning – through Ulti Care, maintenance requirements are factored in from the design stage, not added as an afterthought
The goal is a dock that works the way that facility was designed to work – from the first shift.
Proof That Dock Design Changes Outcomes
~45 min
Loading time per container – before
8–12 min
Loading time per container – after
NZ dry-goods distribution facility – on-grade container loading system designed and installed by Ulti Group. Labour reduced from one forklift, one pallet jack, and three people to a single forklift operator.
That outcome wasn’t the result of better equipment alone. It was the result of designing the right loading scenario for the operation before the building decisions were fixed.
Across cold storage facility design and logistics and warehousing environments, Ulti has worked with NZ operators where improved dock sealing, correct leveller specification, and proper loading configuration directly supported cold chain performance, energy efficiency, and operational throughput – outcomes that start at the design table, not at the equipment selection stage.
When Should You Call Ulti?
Before the floor level is committed.
Dock design input is most valuable – and least expensive – at the point where building geometry is still adjustable. Once the slab is poured, the pit configuration is fixed. Once the façade is set, the dock opening dimensions are fixed. Once building consent is lodged, changes require amendments.
If you’re an architect or specifier working on a facility with a loading dock, engage Ulti at concept or developed design stage, when the questions a specialist asks can still change the answers.
If you’re a project manager or facility owner, engage Ulti before your brief your own design team, so dock requirements are built into the plans, not retrofitted into them.
And if the design stage is behind you, that doesn’t mean a specialist review isn’t worthwhile. Ulti works with existing facilities regularly – assessing what was built, what the operation needs, and where performance can be improved. Sometimes the constraints are fixed. Often there’s more room to improve than the team expects.
The dock loading systems range covers the full spectrum of NZ dock configurations. The right configuration always starts with the right conversation – and the right conversation starts early.
