Ulti Duo Therm Air Door

Double-Insulated Door With Integrated Air Barrier System

Need an innovative system to manage extreme temperature or humidity differences?

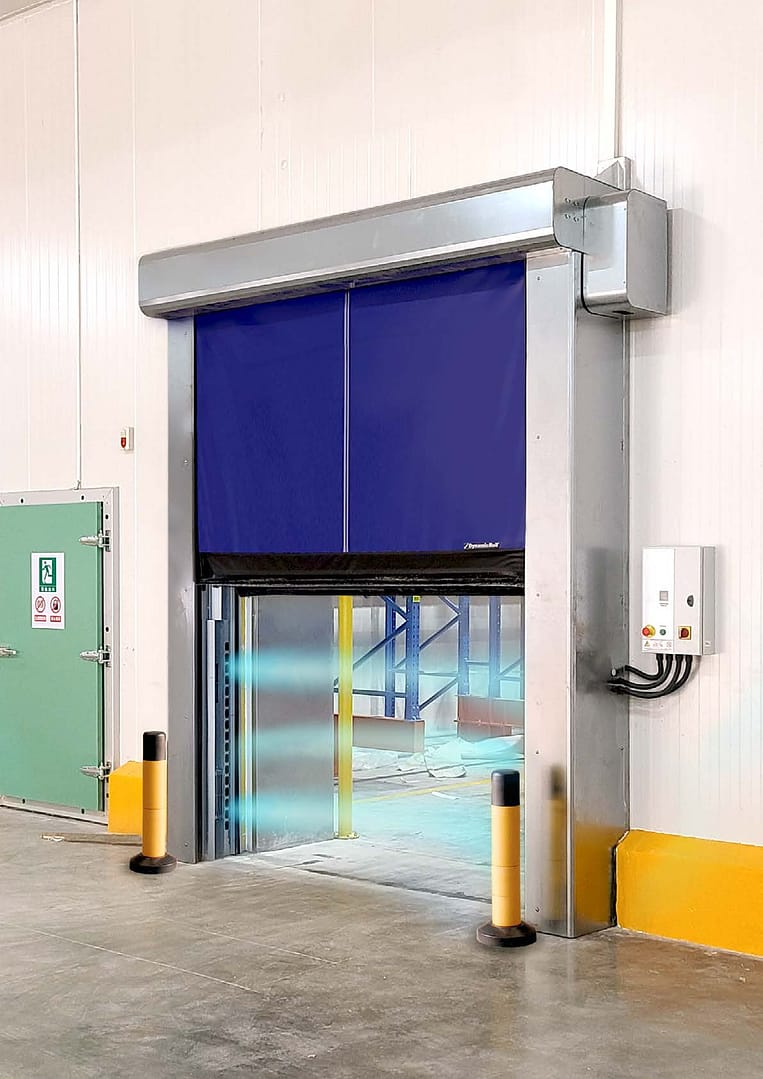

Formerly known as Ulti Frigo 2 Air, this compact, double-insulated door system combines the benefits of the standard Ulti Duo Therm with an air curtain in one common frame.

1.8m/s

Max speed

6x7m

Max size (WxH)

Class 2

Wind Resistance

2.0

U-Value (W/m2K)

* May vary dependent on product configuration

When the door is open, the integrated horizontal air barrier system controls the transmission of warm/moist air across the doorway, almost eliminating ice build-up. When closed, the dual curtain design creates a dead air space filled with treated air for ultimate insulation.

✔ Next-Generation Design – eliminates ice build-up and outperforms all traditional freezer door types.

✔ Ultimate Thermal Performance – with applications across almost any entrance, from a -35C cold storage to high humidity ELAs.

✔ High Speed – rapid 1.8m/sec opening speeds to maximise productivity and minimise the chance of impact damage.

✔ Low Maintenance – innovative track design allows the curtains to unzip from the guides after accidental impacts. Curtains re-feed automatically to minimise downtime.

✔ Versatile Applications – compact design for restricted building clearances. Ideal for use in the refrigeration industry, heated facilities, supermarkets, freezer openings and more.

✔ Highly Customisable multiple upgrade options allow ultimate flexibility across multiple industries/applications.

Free guide

Maximising Your Energy Efficiency In Cold Storage Areas

Enquire Now >
Features

Take a closer look

Hover over the dots to find out more about the unique features of this door

1

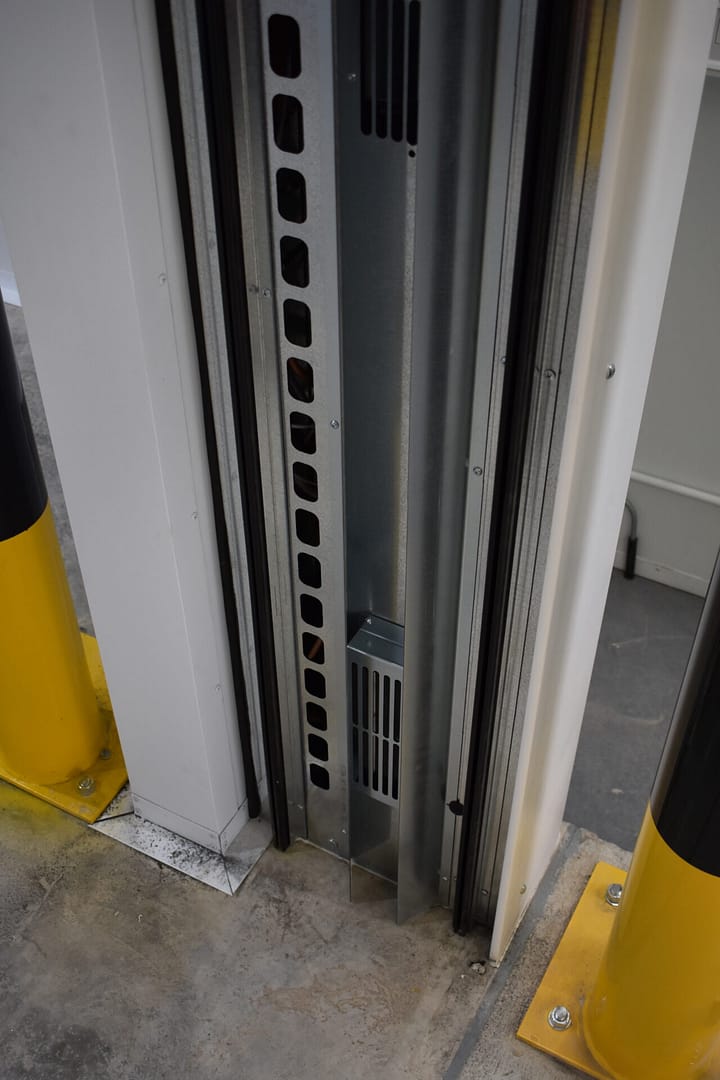

Dual integrated air curtain system that re-circulates the air in the opening to ensure optimal separation between zones even when the door is open

2

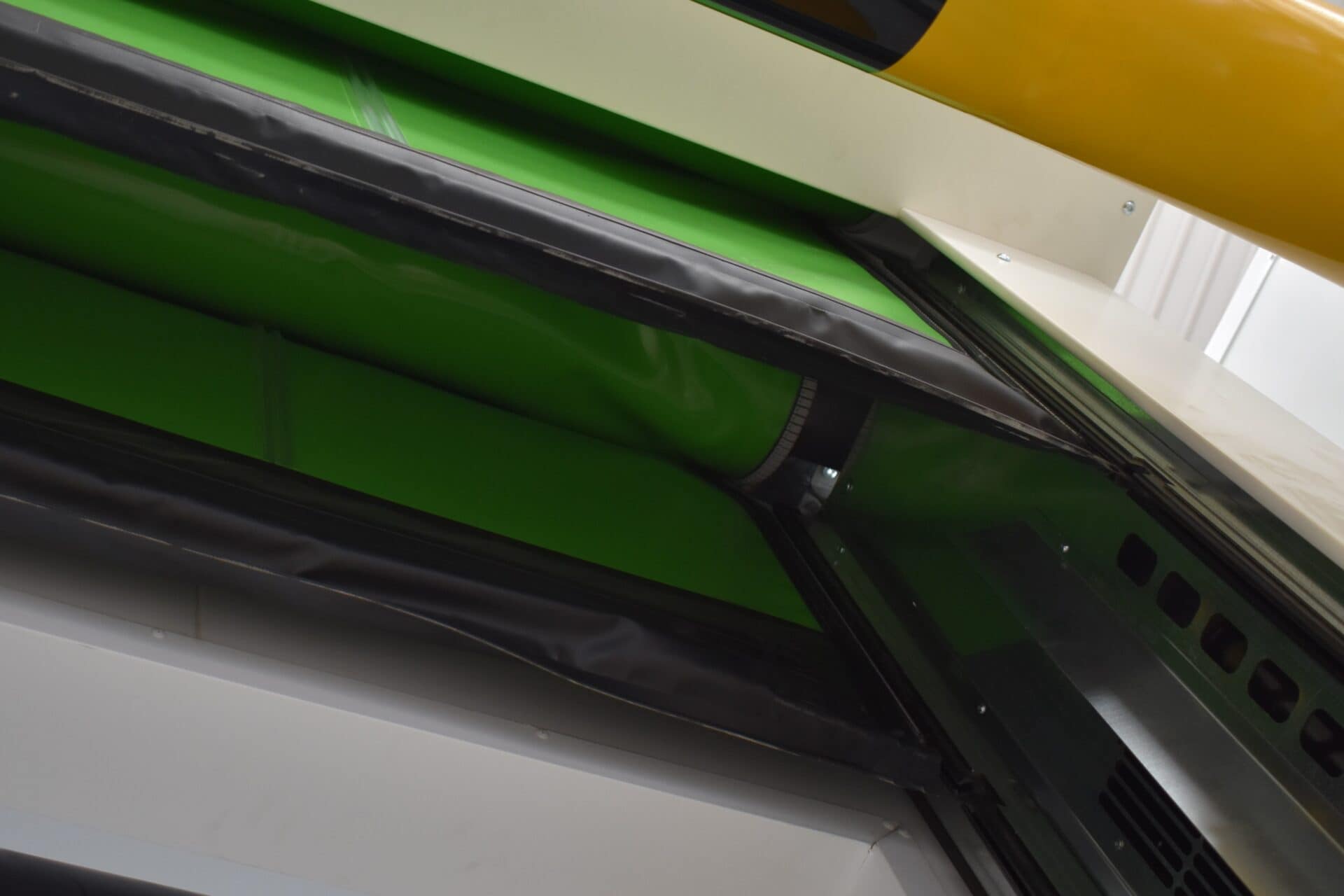

Dual curtains that rise together, for additional insulation

3

Heater blower that blows treated air into the gap between the curtains when the door is closed as a further layer of insulation
