What’s Inside a Temperature-Controlled Load-Out Area – And Why Every Detail Matters

If you work in cold storage or food processing, you know how much pressure sits at the boundary between your cold chain and the outside world. That boundary – the temperature-controlled load-out area – is where product integrity is most at risk, where forklift and pedestrian traffic converge, and where the wrong setup can quietly cost you money every single day.

A temperature-controlled load-out area (ELA – environmental load-out area) is a dedicated, insulated zone that maintains a controlled climate between your refrigerated storage and the loading dock. Rather than moving product directly from a -20-something degree freezer into ambient outdoor conditions, an ELA acts as a buffer – protecting temperature-sensitive product during transfer, reducing ice build-up, and keeping your team safer.

Getting this zone right is not just about picking a door. It’s about how every element – the barriers, the doors, the activation systems – work together to protect your product, your people, and your building.

Here’s what a well-designed ELA actually looks like, and why each component earns its place.



The High-Risk Zone You Might Be Underestimating

An ELA is one of the busiest and highest-risk areas in a cold storage or food processing facility. You have forklifts moving fast through a shared space. You have pedestrians navigating the same zone. You have insulated panels that are expensive to repair and easy to damage. And you have temperature-sensitive product that cannot tolerate delays or exposure.

According to WorkSafe NZ, pedestrians are most often seriously hurt by forklifts in workplaces – and shared loading zones are among the most common sites for these incidents. WorkSafe’s Managing Work Site Traffic – Good Practice Guidelines (February 2021) puts physical separation of forklifts and pedestrians at the centre of traffic management in industrial facilities.

A well-designed ELA addresses this head-on, before product ever touches the loading dock.



Barriers and Building Protection: The First Line of Defence

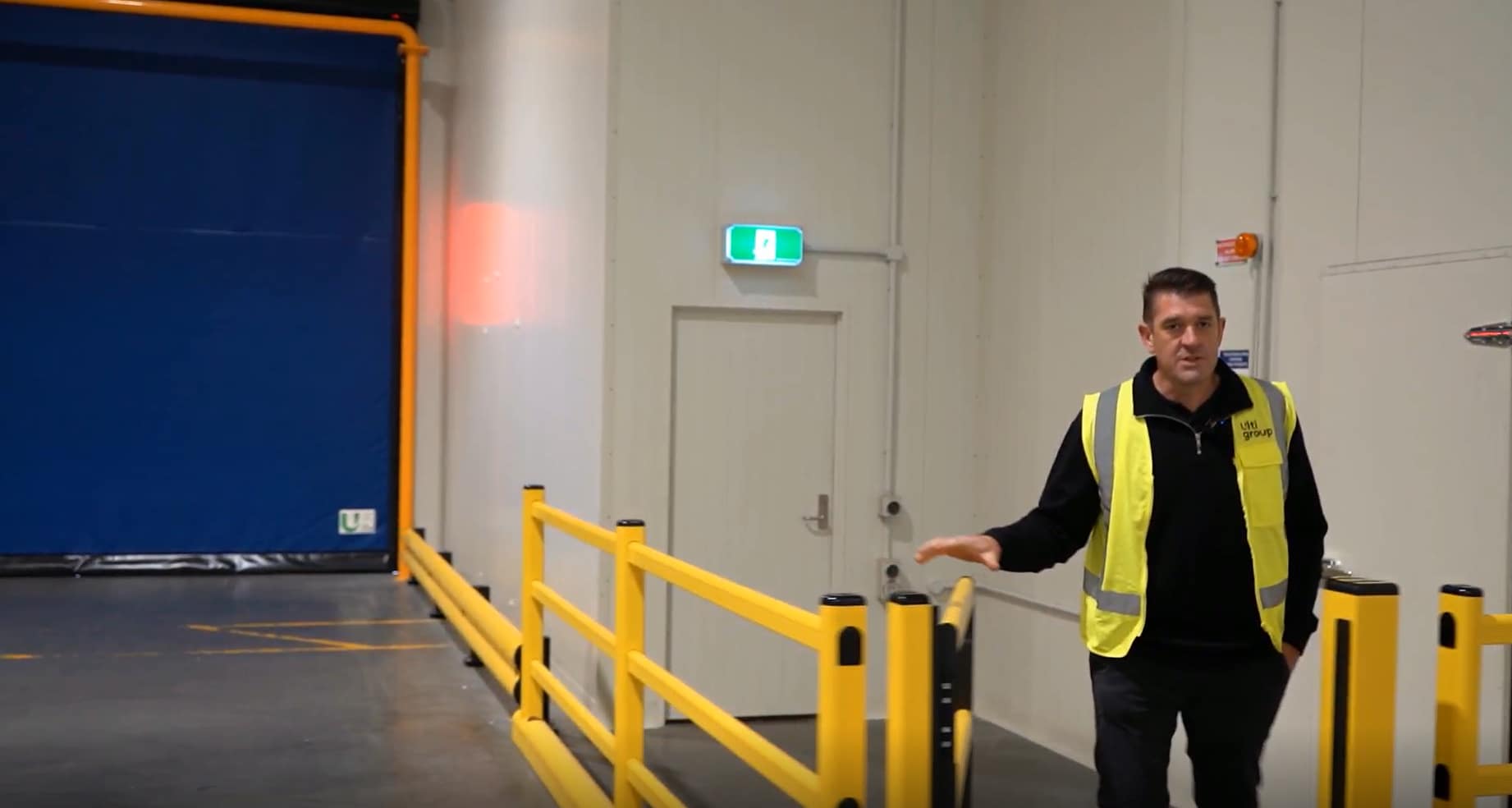

Walk into a properly set-up ELA and the first thing you’ll notice is the barrier system. This is not cosmetic – it is doing real work.

Pedestrian walkways and bollards

Flexible pedestrian barriers create clear, protected walkways that separate foot traffic from forklift zones. MPM flexible bollards, distributed by Ulti Group, are a common choice for this application. Made from high-visibility yellow PVC, these barriers are shock-absorbent and modular – they flex on impact and return to position, with only the fixings needing replacement rather than the barrier itself. That means lower ongoing maintenance costs and no floor damage from rigid steel alternatives.

For heavier-duty protection at pedestrian access points, Ulti’s Impactable Bollard and Barrier Range includes the Ulti Impactable Pedestrian Barrier (PED 90 and PED 150), rated to 2000 Joules of impact resistance. At 1185mm high in high-visibility yellow, these create a clear, durable boundary that communicates the pedestrian zone unambiguously to forklift operators.

Wall base protection

Insulated panel walls are one of the most expensive elements of any cold storage or ELA build. A single panel replacement can cost significantly more than the barrier that would have protected it. Wall base protection barriers along the lower sections of these walls absorb forklift impacts before they reach the building fabric – a straightforward investment that pays for itself many times over.

Full frame bollards around doorways

High-traffic doorways in an ELA – especially those framing expensive insulated panels – are typically protected with full frame bollards. Forklifts carrying loaded pallets have limited visibility and stopping distance. Full frame bollards create a buffer between the door frame and any vehicle approaching at angle or speed, protecting one of the costliest points of failure in the zone.

Handrails on steps and ramp edge barriers

Where an ELA includes a step system or a ramp – common where floor levels differ between zones – a handrail is more than a compliance item. Ulti’s Impactable Pedestrian Handrail (HR 90) functions simultaneously as a pedestrian guide and as an impactable barrier rated to 2000 Joules. At 1185mm high, it guides people safely and resists the occasional contact from slow-moving equipment.

Ramp edge barriers serve a different purpose – protecting forklifts themselves from running off the edge of a ramp. In a busy ELA where speed is expected, these are essential.



The Rapid Roll Door: Temperature Control Where Traffic Is Constant

The primary internal door in a temperature-controlled ELA is typically a high-speed insulated rapid door. This is the door that carries the traffic load – forklifts moving product in and out throughout the operating day.

An Ulti Roll Door with an insulated curtain is a common choice for this application. Operating at up to 2.5m/s, it opens fast enough to keep pace with forklift traffic without holding up production. The insulated curtain is critical in an ELA environment – it significantly reduces condensation build-up that would otherwise form each time the door opens, pulling warm, humid air into contact with cold surfaces.

The Ulti Roll Door is rated for food processing and chilled environments, suitable for wash-down, and carries Class 4 wind resistance – relevant where the ELA connects to a loading dock exposed to outdoor air movement.



Door Activation: Making Sure Doors Open When They Should – and Don’t When They Shouldn’t

An insulated rapid door is only as good as the system that tells it when to open. Use the wrong activation method and you’ll find the door cycling unnecessarily, leaving it open longer than needed, or not responding when a loaded forklift needs to move through quickly.

In an ELA, two activation types are most common:

Floor Induction Loop

A Floor Induction Loop is installed directly into the concrete floor in front of the door. A wire loop is set to channel cut into the floor, grouted in place, and connected to the door’s control system. When a forklift passes over the loop, the steel in the vehicle disrupts the magnetic field the loop generates – and the door opens automatically.

The key advantage in an ELA setting: the floor loop responds to steel, not motion. That means pedestrians on foot won’t trigger unnecessary door cycles. In a shared zone where keeping the door closed except when needed is essential to temperature control, this selectivity matters.

Floor loops can be cast in at the time of the concrete pour or cut in after the fact. The upfront installation cost is higher than surface-mounted sensors, but in cold stores and food processing facilities where controlled access is a priority, the long-term reliability is worth it.

Contactless Sensor (Radar Activation)

A Contactless Sensor detects motion within a small radar window – typically up to 50cm – and activates the door without any physical contact. This makes it a hygienic option in food processing environments, where eliminating contact points is important for compliance.

Radar sensors work well in lower-traffic zones or where the activation needs to work for both forklifts and pedestrians. In busy ELA environments with mixed traffic, a floor induction loop – or a combination of both – often provides better control over unnecessary door cycles. Understanding why your rapid door might be opening too often comes down, in large part, to activation system choice.



The Komby Door: Day-Use Performance, After-Hours Security

Behind the primary rapid roll door in many ELA setups, you’ll find a second door – a roller shutter. On the surface, this might look like duplication. In practice, it’s a straightforward separation of two very different functions.

The Ulti Komby Door combines a high-speed roll door and a roller shutter within a single frame – removing the need for two separate door openings and the structural cost that comes with them.

During operational hours, the rapid roll component handles all the traffic – opening at up to 3m/s and closing quickly to maintain temperature control and minimise exposure. Once the day’s activity is done and the facility is secured, the roller shutter closes behind it. The result is a security barrier that protects the facility from unauthorised entry overnight, without requiring a second structural opening.

This combination is particularly valuable in facilities where the loading zone is accessible from the yard – a common configuration in cold storage sites where trucks come and go through the same entry point used for internal forklift operations. The Ulti Komby Door is crash-resistant and capable of meeting MPI code compliance requirements where relevant.



The Freezer Door: Where the Cold Chain Begins

At the far end of the ELA – the point where the temperature-controlled buffer zone meets your actual freezer or cold store – sits the freezer door. This is the boundary the cold chain depends on.

Ulti’s range of high-speed insulated freezer doors includes options designed specifically for ELA environments. The Ulti DuoTherm Air Door combines a high-speed insulated door with an integrated air curtain system – creating a physical seal when closed and an air barrier when open. It is rated for applications from deep-freeze cold storage through to high humidity ELAs, making it one of the most capable options for this exact environment. The Fastrax FR Door – the fastest freezer door in Ulti’s range at 2.5m/s – is also explicitly designed for environmental load-out areas, with strong insulated curtains and a self-repair feature that minimises downtime if the door is impacted.

Choosing the right freezer door for your ELA depends on your operating temperatures, traffic volume, and how much the door will be used in a typical shift. Talk to Ulti’s team about your specific setup – the right door for a -15°C chiller zone is a different conversation from the right door for a deep-freeze application.



What a Well-Designed ELA Looks Like in Practice



Frequently Asked Questions

What is a temperature-controlled load-out area (ELA)? A temperature-controlled load-out area (ELA) is an insulated, climate-controlled zone between refrigerated storage and a loading dock. It protects temperature-sensitive product during transfer, prevents ice build-up, and manages forklift and pedestrian movement safely. It is a critical part of cold chain integrity in cold storage and food processing facilities.

Why does ELA stand for in cold storage? ELA stands for environmental load-out area. It refers to a temperature-controlled buffer zone in a cold storage or food processing facility that sits between the refrigerated area and the loading dock, maintaining controlled conditions during product transfer.

Why do load-out areas need physical barriers? WorkSafe NZ identifies as a leading cause of serious pedestrian injury in workplaces. Temperature-controlled load-out areas see constant shared movement between forklifts and people. Physical barriers – pedestrian bollards, wall base protection, and handrails – separate these zones and protect both people and the building from vehicle impacts.

What is a floor induction loop and how does it work? A floor induction loop is a wire loop installed into the concrete floor in front of a door. It creates a magnetic field that is disrupted when steel – from a forklift or vehicle – passes over it, triggering the door to open automatically. Pedestrians on foot do not activate it, making it ideal for cold stores where controlling unnecessary door cycles is essential to temperature management.

What is the difference between a rapid roll door and a Komby door in an ELA? A rapid roll door handles daily throughput – opening at high speed for forklift access and closing quickly to maintain temperature. The Ulti Komby door, combines a rapid roll door and roller shutter in a single frame. The rapid roll manages operating hours; the roller shutter provides after-hours security without needing a second structural opening.

What is the best freezer door for environmental load-out area? The right freezer door for an ELA depends on operating temperature, traffic volume, and whether an integrated air curtain is required. The Ulti DuoTherm Air Door is rated for applications from deep-freeze cold storage to high humidity ELAs. The Fastrax FR Door – Ulti’s fastest freezer door at 2.5m/s – is also explicitly designed for ELA applications. Talk to Ulti’s team about your specific requirements.

Can I add barriers and bollards to an existing temperature-controlled load-out area? Yes. MPM flexible bollards and Ulti Impactable Pedestrian Barriers are anchored with base plates bolted to existing concrete. They do not require major structural modifications and can be installed as part of a safety upgrade in an operating facility with minimal disruption.

What is the difference between a floor induction loop and a radar sensor for door activation? A floor induction loop responds only to steel from vehicles – it won’t trigger for pedestrians, making it the preferred choice where minimising unnecessary door cycles is a priority. A contactless radar sensor detects motion within a small window and activates the door without any physical contact – a hygienic option for food processing environments. In busy ELAs with mixed traffic, a floor loop or a combination of both often provides better temperature and access control.
